MOT-5602BW Electro-hydraulic Operating Table

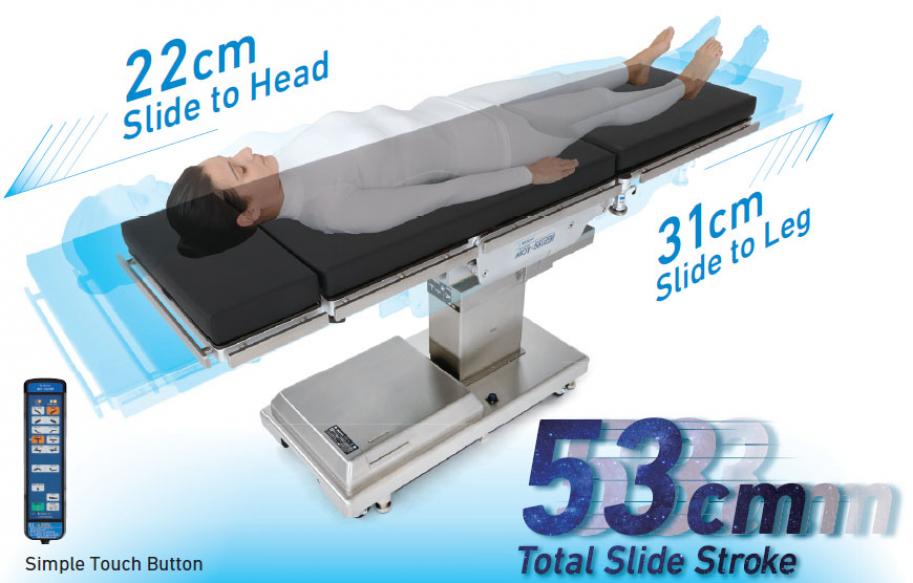

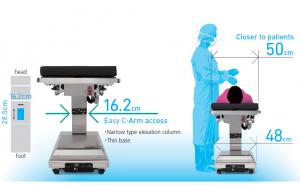

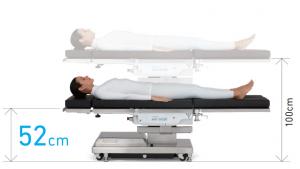

Wide imaging area with 53cm top sliding for C-arm access and the lowest hight 52cm

➡ here: catalog DL

MOT-5602BW Electro-hydraulic Operating Table
MOT-5602BW Electro-hydraulic Operating Table MOT-5602BW Electro-hydraulic Operating Table
Table top length / width
1950mm / 500mm
Tabletop elevation
520mm - 1000mm
Lateral tilt (right / left)
20°/ 20 °
Trendelenburg
Head up 25°
Head down 25°
Back section
up to 90°
down to 40°
Leg plate
down and open to 90°
Top slide
220mm to head direction
310mm to foot direction
