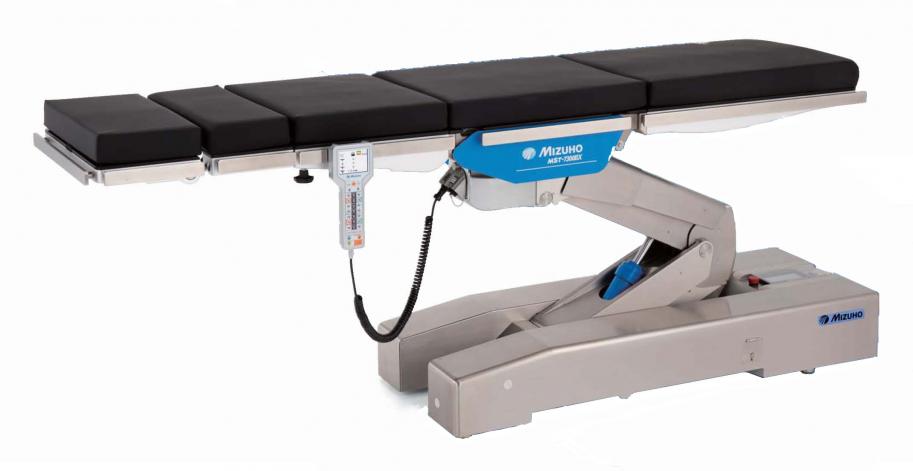

MST-7300B/BX Electro-hydraulic Operating Table for Microsurgery

Z Shaped elevation system provides the table lowest height as 400mm for 7300B and 450mm for 7300BX which pursuit of the lower table position. While the best platform of microsurgery such as Brain tumor and Aneurysm surgeries yet it is provided with versatility to cope with surgery of a wide spectrum.

➡ here: catalog DL

MST-7300B/BX Electro-hydraulic Operating Table for Microsurgery
Table top length/Table top width
2100mm/500mm
Height
MST-7300BX : 450mm-1100mm
MST-7300B : 400mm-1050mm
Lateral tilt(right/left)
20°/20°
Trendelenburg(/reverse)
45°/20°
Back up/down
90°/30°
Leg up/down
50°/45°
Top slide (MST-7300BX)
X Sliding 80mm right/left
Y sliding 100mm to head/leg
