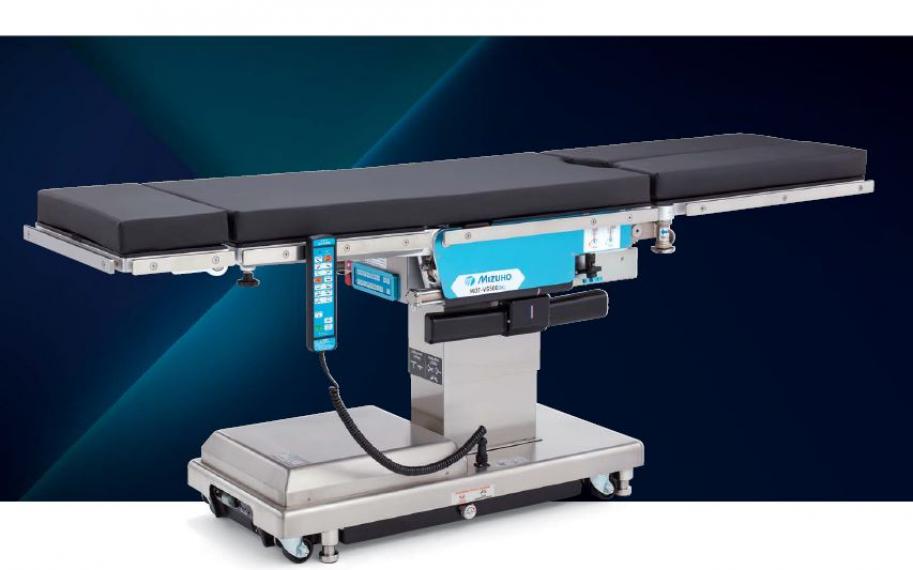

Operating Table MOT-VS500 Series

The MOT-VS500 series possess excellent accessible functions for imaging which ensure adequate sliding ranges. In addition, the table are standardly equipped with motorized Kidney Bridge.

➡ here: catalog DL

Table top length / width: 2133mm / 500mm

Tabletop elevation: DK: 635mm - 1090mm
SK: 635mm - 1090mm

Lateral tilt: DK: Right 20°Left 20°
SK: Right 20°Left 20°

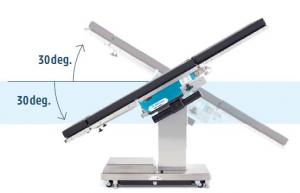

Trendelenburg: DK/ SK: Head up 30°
DK/ SK: Head down 30°

Back section: DK/ SK: up to 90°
DK/ SK: down to 40°

Leg plate down / open: DK: 90°/ 90°
SK: 100°/ N/A

Flexing / Reflex angle: DK/ SK: 220°/ 90°

Kidney Bridge: 150mm
