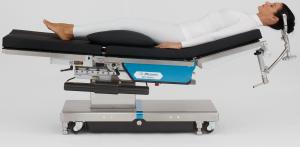

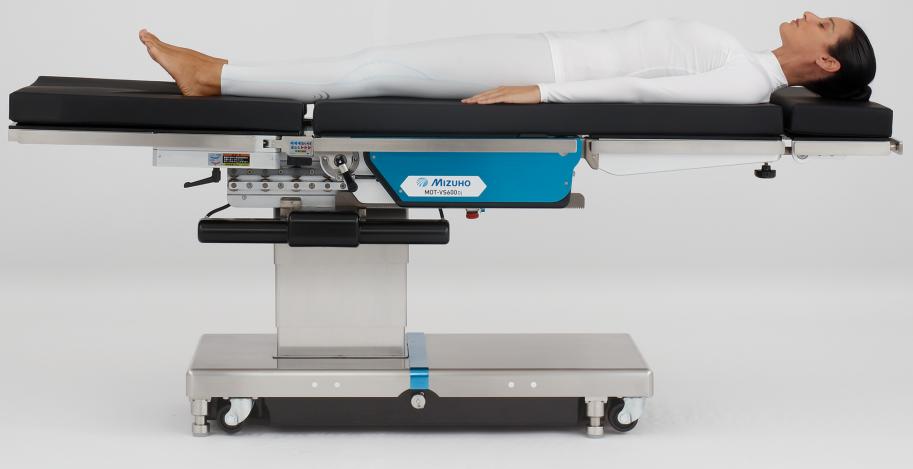

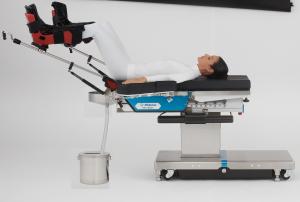

Operating Table MOT-VS600 Series

The MOT-VS600 series possess excellent accessible functions for imaging which ensure adequate sliding ranges. In addition, DK and DHK models are standardly equipped with motorized Kidney Bridge.


➡ here: catalog DL

Operating Table MOT-VS600 Series
Operating Table MOT-VS600 Series Operating Table MOT-VS600 Series
Table top length / width
2124mm / 500mm
Tabletop elevation
D/DK: 520mm - 1000mm
DH/DHK: 580mm - 1060mm
Lateral tilt
Right 35°Left 35°
Trendelenburg
Head　up 30°　Head　down 40°
Back section
up to 90°
down to 40°
Leg plate down / open
90°/ 90°
Flexing / Reflex angle
220°/ 90°
Kidney Bridge
DK/DHK: 150mm
