Operating Table MOT-VS700 Series

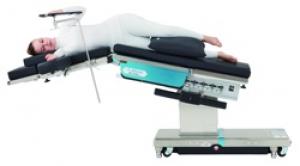

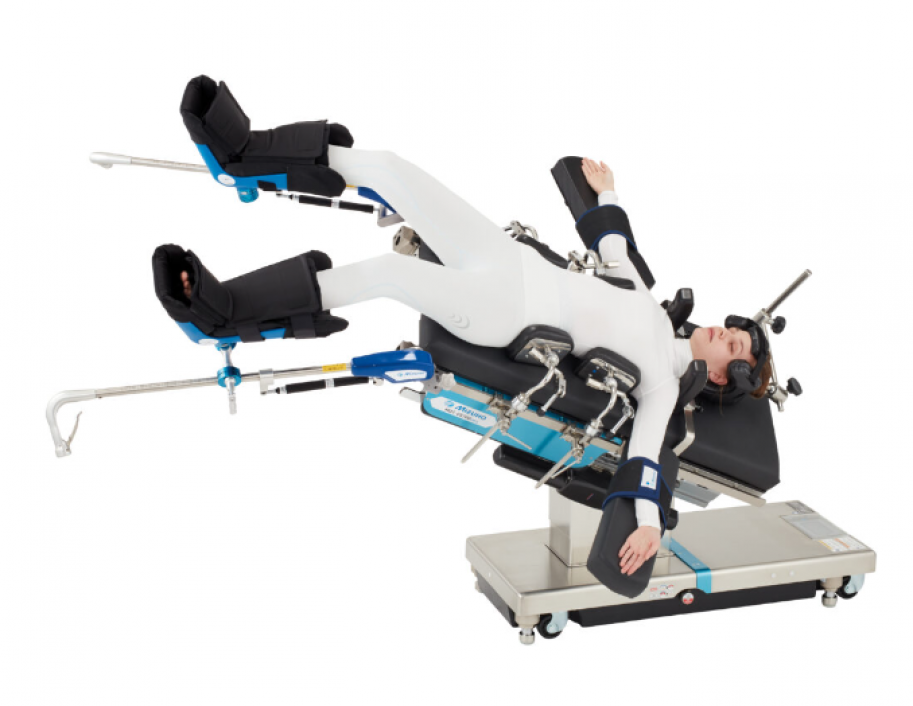

The MOT-VS700 series possess excellent accessible functions for imaging which ensure adequate sliding ranges. In addition, the tables are standardly equipped with motorized Kidney Bridge, the electric selectable leg sections and wireless hand controller.

➡ here: catalog DL

Table top length / width: Double Leg: 2124mm / 500mm
Single Leg: 2005mm / 500mm

Tabletop elevation: 520mm - 1000mm

Lateral tilt: Right 35°Left 35°

Trendelenburg: Head up 30°　Head down 40°

Back section: up to 90°
down to 40°

Leg plate down / open: 90°/ 90°

Flexing / Reflex angle: 220°/ 90°

Kidney Bridge: 150mm
